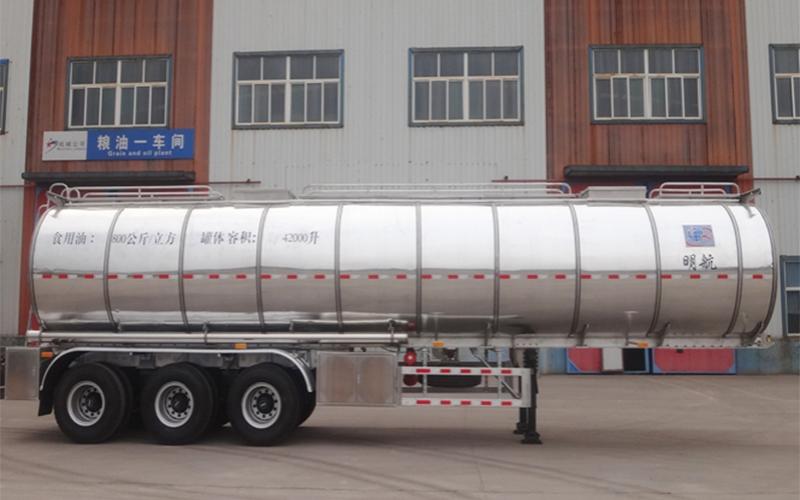

The 30--60 CBM Aluminum Alloy Cooking Oil Tank Trailer is designed for the transportation of food grade materials such as cooking oils and similar products.
The aluminum alloy cooking oil tank trailer offers advantages over ordinary steel tankers due to its lightweight materials and construction. The aluminum trailer is 4 to 6 tons lighter than ordinary tank trailers. The anti-static nature of aluminum alloy prevents sparks, which can create hazardous incidents in some cases. The tanker is lightweight, environmentally friendly, and can haul large loads.
|Tank Body Material||6mm aluminum alloy 5454|
|End plate||7mm aluminum alloy 5454|
|Lifting Ladder||Including top walkway and backside aluminum material|
|Manhole cover||Aluminum alloy API manhole cover, 500mm, 2 sets with 2 breather valves|
|Bottom Valve||1 sets of pneumatic bottom valve, pneumatic control|
|Discharging valve||1 set ,100mm discharging valves, API standard|
|Compartment||1 or your requirements|
|Discharging Pipe||4"rubber hose, 2 pc, 6m long|
|Main Beams||Special design I beam, aluminum saddle support.|
|Axle||2 or 3 axles, FUWA 13 ton|
|Landing Gear||25ton,Two-speed, manual operating, heavy duty landing gear|
|King Pin||3.5" bolt-in king pin|
|Suspension||Full set of BPW brand Air bag suspension|
|Pneumatic Braking System||6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.|
|Tire||425/65R22.5 18PR, 12R22.5 tire, Triangle brand|
|ABS System||Fitted with 4s/2m Type|
|Other Design and parts|| 1. Vapor recovery system.
2. Dust Board to Cover the Tires
3. Rear and side lights.
4. Rear Ladder to access the top of the tanker.
5. Aluminum crown to whole length of Tank.
6. Walkway with air operated foldable handrail. (optional)
7. Tool Box 120cm (without tools).
8. Double spare tire carrier (winch type).
9. 2 No's of fire extinguisher holder.
1. The tank body is manufactured according to international plate quality standards using a 12 meter large plate rolling machine for molding. This creates a stronger and more durable finished tank.
2. The bulkhead is produced from 5mm thick corrugated steel plate for lightweight and high strength performance. The 1.2 meter anti-wave plate can minimize impacts during driving.
3. The two dished heads of the tank are manufactured using a plasma CNC cutting machine. They are formed using a dished end flanging machine that does not allow for manual percussion of the flange to avoid material damage.
4. The tank itself is constructed through an automatic gas-shielded welding process to ensure the quality of the tank weld. The tank will be welded only once with a one-piece formed longitudinal stringer that will optimize the strength of the tank structure.
5. Finished tanks are tested for gas tightness. If the gas pressure drops below 50Kpa, the tank will be deemed unqualified and the materials will be recycled.
6. The tank features internationally advanced technologies to enhance adhesion, uniformity, and durability in regards to paint. Following a thorough inspection, the tank will be sprayed with a polyurethane acrylic acid resistance paint in our spray painting workshop. The tank body will be placed in our hot air ring drying room to ensure a high strength and smooth paint coating.
7. Convenient pipeline layout and side protection net structure. The tank will also be thoroughly cleaned prior to delivery.
8. If a situation arises where the pressure within the tank is higher than the external pressure (6-8KPa) or lower than the external pressure (2-3KPA), the respiration valve will automatically open to normalize the pressure differential and ensure the safety of the tank and those near. When the pressure difference inside is within -2-6KPA the valve will be closed to ensure that there is no wasted contents due to oil evaporation.
9. In the case of an accident, the anti-overflow block in the respiratory valve will automatically seal in case the oil tanker tips. This will minimize the risk of oil leakage.
10. When the trailer is in high temperature environments, the pressure within will be automatically regulated in order to prevent the pressure from building to the point of explosion. When the working pressure inside the tank exceeds the external pressure of 21-32KPA, the emergency exhaust device will activate with a maximum displacement of 7000 cubic meters per hour. This will effectively prevent the danger of an explosion.
Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the aluminum alloy cooking oil tank trailer, we offer a wide range of edible oil tank trailer, stainless steel oil tank trailer, flatbed trailer, cargo semi-trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality aluminum alloy tank semi-trailers and other special transport vehicles with custom solutions.
