Tri Axle Aluminium Alloy Skeletal Trailer

Description:
Sanxing offers customized volume levels for the dump truck box body by using aluminum or steel and then equips them with any brand and model dump trailer based on customer requirements.

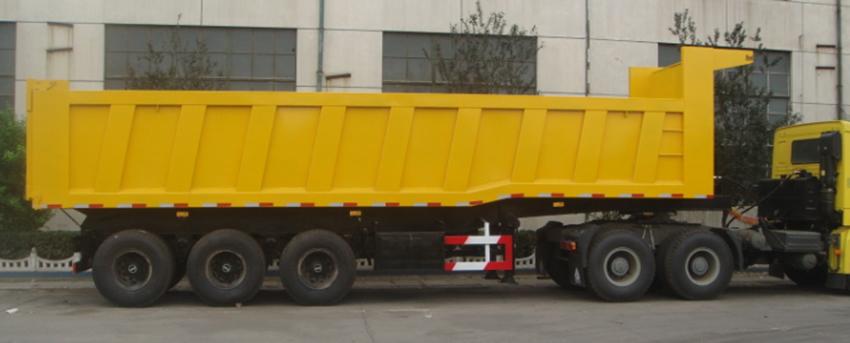

3 Axle Dumper Trailer Parameter
Tare weight 15000kg
Payload 60000kg
Oversize 11000x2500x3500mm
Chassis Heavy duty and extra durability designed I beam, high tensile steel Q345, welded using an automatic submerged-Arc processes. Top flange 14mm, width flange 140mm; Middle flange 10mm; bottom flange 16mm; width flange 140mm
Axle 3 Axle
Capacity 13t/16t
Suspension Mechanical suspension or air suspension
Leaf spring Leaf spring or air bag
Floor and side wall 8mm floor; 6mm side wall
Tire 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 tire optional
Wheel rim 8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice
Kingpin 2"/3.5" bolt-in kingpin
Landing gear JOST brand two-speed, manual operating, heavy duty landing gear
Braking system WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
Accessories One standard tool box

Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the dump trailer, we offer a wide range of aluminium alloy oil tank trailer, stainless steel tank trailer, flatbed trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality dump semi-trailers and other special transport vehicles with custom solutions.
