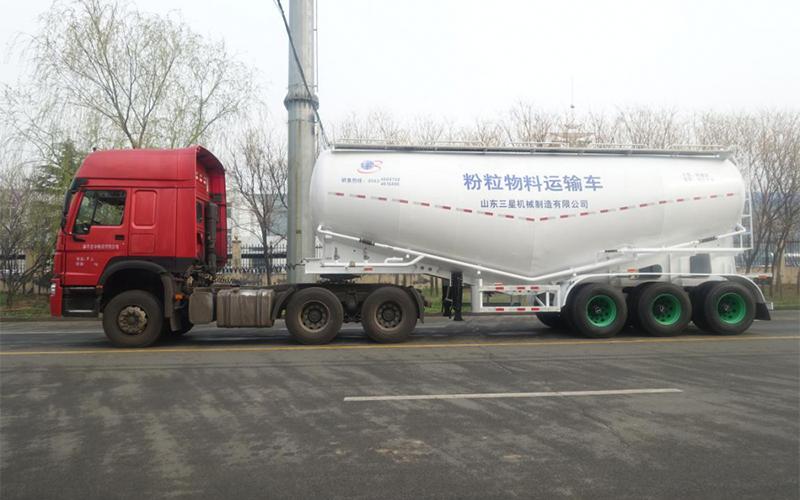

Bulk Powder Tank Trailer
As the name implies, a bulk powder tank trailer is used to transport powdery materials such as cement, flour, lime powder, mineral powder, fly ash, chemical powders, and stone powders. It is most often used for construction sites and warehouses, and traditionally uses compressed air to discharge the powder material from the tank trailer.
Parameters:| Overall Dimension | 11700 x 2500 x 4000 |
| Tare weight | 12000kg |
| Max Payload | 60000kg |
| Volume | 50cbm |
| Wheelbase | 6380+1310+1310mm |
| Track | 2050/2050/2050mm |
| Main beam | Height: 500mm; upper plate is 14mm. Middle plate is 8mm. Down plate is 16mm. Q345 steel. Side beam 16# channel steel |
| Tank body | Q235A/5mm steel sheet shape: V type |
| Forehead and back head plate | Q235A/6mm. ball shape |
| Axle | FUWA Brand 13T 3 axle |
| Suspension | FUWA brand mechanical suspension |
| Leaf spring | Leaf spring 10pcs x 90 x 13mm |
| Manhole cover | 500mm manhole cover 2 sets |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Suspension | Mechanical suspension |
| Discharge valve | 4" disc valve |
| Discharge pipe | 4" seamless steel tube |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | FUWA brand two-speed, manual operating, heavy duty landing gear |
| Engine | WEICHA Brand 4102 diesel engine |
| Air Compressor | 12M³/min.1000r/Min.38 KW.0.2Mpa. |
| Compartment | Single |
| Air-charging system | 2" main hole.2"check valve. 1.5" safe valve. 0.4Mpa gauge |
| Outlet discharge pipe | 4" rubber hose 6m |
| Braking system | WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks |
| ABS | 4S/2M KEMI Brand |
| Electrical | Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type, Tail lamp with turn signal, brake light & reflector, One set 6-core standard cable |
| Painting | The complete chassis has undergone sand blasting to remove any rust, then is coated in a single coat of a corrosion prevention primer, then 2 coats of a final paint wax spray. |
| Accessories | One tool box 1000 x 500 x 500mm. One spare tire carrier. One crank. One shaft head wrench. Four side light. Two rear light. |
Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the bulk powder tank trailer, we offer a wide range of liquid tank trailer, oil tank trailer, flatbed trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality bulk cement powder tank semi-trailers and other special transport vehicles with custom solutions.
