Central Axle Trailer

Description:
We developed a central axle trailer in two different types for customers to choose from: all aluminum, or composite plate. Both feature a light weight, high strength and excellent loading capabilities, thus improving transportation efficiency and providing support for drop and pull transportation. Customers from both Europe and America have utilized our central axle trailer, to excellent results.

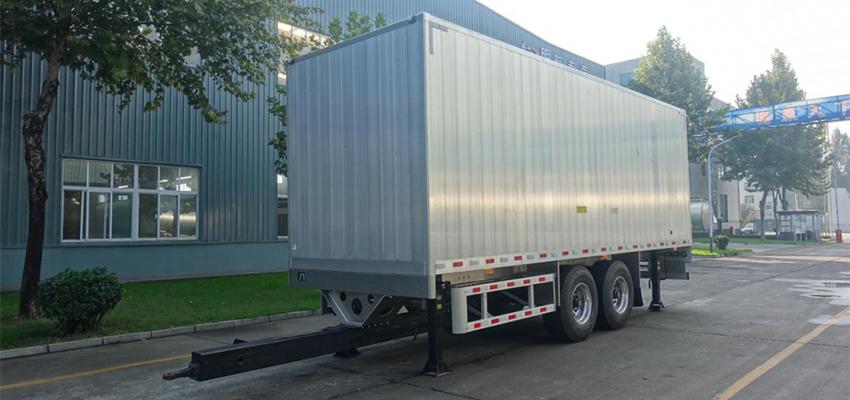

Aluminum alloy central axle trailer
Parameter 20000 x 2500 x 3900 Total weight 36000kg
Central Axle Trailer
Dimension 11250 x 2550 x 3990 Inner Dimension 8860 x 2506 x 2688
Volume 59m³ Weight 8180kg
Rated load 9820kg wheel base 6500mm
Central Axle Trailer
Dimension 8000 x 2550 x 2800 Inner Dimension 7958 x 2506 x 2678
Volume 53m³ curb weight 3820kg
rated load 14180kg Suspend air suspension
wheel base 5495+1310
Carbon steel central axle trailer
Parameter 20000 x 2500 x 3900 Total weight 36000kg
Central Axle Trailer
Dimension 11250 x 2550 x 3990 Inner Dimension 8860 x 2506 x 2688
Volume 59m³ Weight 8180kg
Rated load 9820kg wheel base 6500mm
Central Axle Trailer
Dimension 8000 x 2550 x 2800 Inner Dimension 7933 x 2476 x 2608
Volume 51m³ curb weight 4740kg
rated load 13260kg Suspend plate spring
wheel base 5495+1310

Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the central axle trailer, we offer a wide range of aluminium alloy tank trailer, stainless steel tank trailer, carbon steel stainless steel tank trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality central axle trailers and other special transport vehicles with custom solutions.
