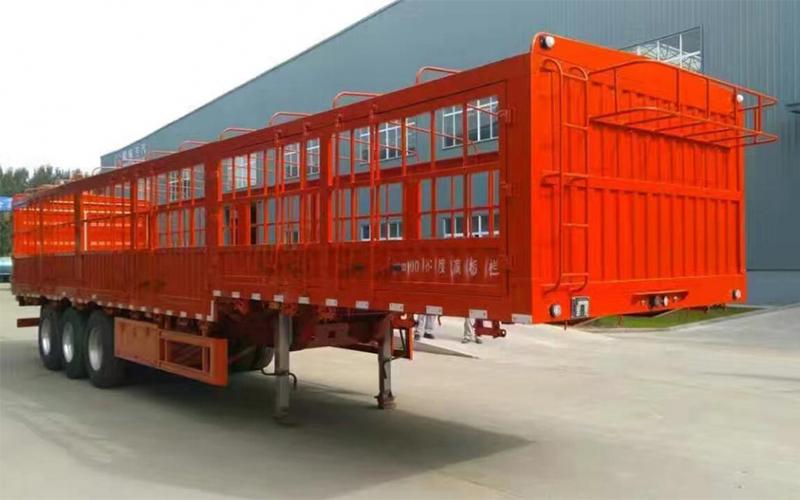

Gooseneck Stake Bed Trailer

The gooseneck stake bed trailer is designed to be light weight, and is made entirely of high strength steel. With its light weight of only 2 to 3 tons, and high strength, it is a better, and more popular choice than other traditional transportation trailers.

Overall Dimension
(Lx W x H)(mm)
13000 x 2500 x 3550
Tare Weight(KG) 5550
Loading Weight( KG) 40000
Axle Brand 13 Tons FUWA / BPW
Axle Number Three
Wheelbase(mm) 7450+1310+1310
Suspension system Leaf Spring Suspension 10/10/10
Main beam The height of the beam is 500 mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm.
Platform plate 3mm diamond plate
Beam Gooseneck
Tire Type and quantity 12R22.5 12units Triangle
Traction Pin 50MM or 90MM JOST
Spare Wheel Bracket 2 pieces 2个
Tool Box 1 standard
Landing Gear 28ton standard
Brake system Dual line braking system, Webco ABS.
Brake air chamber Two double and two single chamber
Electrical system 1. Voltage: 24V
2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp
One set 6-core standard Cable.
Fence Guard Height As per customer requirements
Painting As per customer requirements

Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the gooseneck stake bed trailer, we offer a wide range of aluminum alloy liquid tank trailer, bulk cement tank trailer, cargo semi-trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality stake bed semi-trailers and other special transport vehicles with custom solutions.
