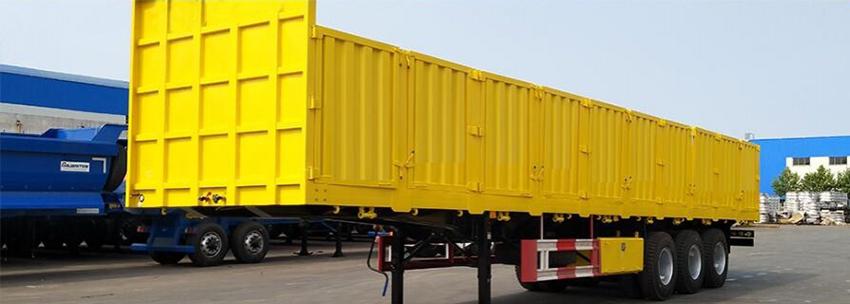

3 Axle High Side Utility Trailer
| Overall Dimension | 13000 x 2500 x 2700 |
| Height of side wall plate | 600mm |
| Tare Weight(KG) | 6700 |
| Loading Weight( KG) | 40000 |
| Axle Brand | FUWA axle(Chinese best brand) |
| Suspension system | Common mechanical suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| Main beam | The height of the beam is 450/500 mm, upper plate is14mm, down plate is 16mm, and the middle plate is 8mm. Thickness of the side wall plate is 1.5mm. |
| Platform plate | 3mm diamond plate |
| Container Twist Locker | 12 pieces |
| Tire Type and quantity | 11R22.5 12units |
| Traction Pin | interchangeable 2' or 3.5' |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | 28ton |
| Brake system | Dual Line braking system, none ABS. |
| Electrical system | Voltage: 24V Receptacle: 7 ways (7 wire harness) Tail lamp with turn signal, brake light & reflector, side lamp |
| Side Guard | According to customer requirements |
Sanxing has been manufacturing heavy duty vehicles and special vehicles since 1994. Besides the 3 axle high side utility trailer, we offer a wide range of aluminium alloy liquid tank trailer, stainless steel fuel oil tank trailer, flatbed trailer and so on. From the raw material selection to manufacturing process, we have rich experience and offer high quality 3 axle high side semi-trailers and other special transport vehicles with custom solutions.
